Need a van that can keep vaccines, fresh produce, or sensitive chemicals cold even when the temperature drops to -30 °C? We’ll walk you through the exact steps to design, install, and certify a commercial‑van cold‑chain retrofit that survives extreme Canadian weather and strict safety rules.
Step 1: Define the Cold‑Chain Duty Cycle and Compliance Requirements
First, map out how the van will be used each day. Record start‑up time, idle periods, and peak cargo loads. This “duty cycle” tells you how much cooling power you need and how long the system must run on battery or hydraulic power.
Next, list every regulation that applies. For mining or construction fleets, MSHA‑approved blast‑zone ratings are non‑negotiable. Food‑grade transport must meet ISO 23875 and, in some cases, ECWTA or GDP standards. The ISO 23875 standard defines temperature‑control testing procedures for mobile units. See the official description on the standard’s official page for details.
We then compare your route’s ambient extremes. A northern‑Canada delivery route that sees -35 °C winters will need heavier insulation and a higher‑capacity compressor than a temperate‑climate urban route.

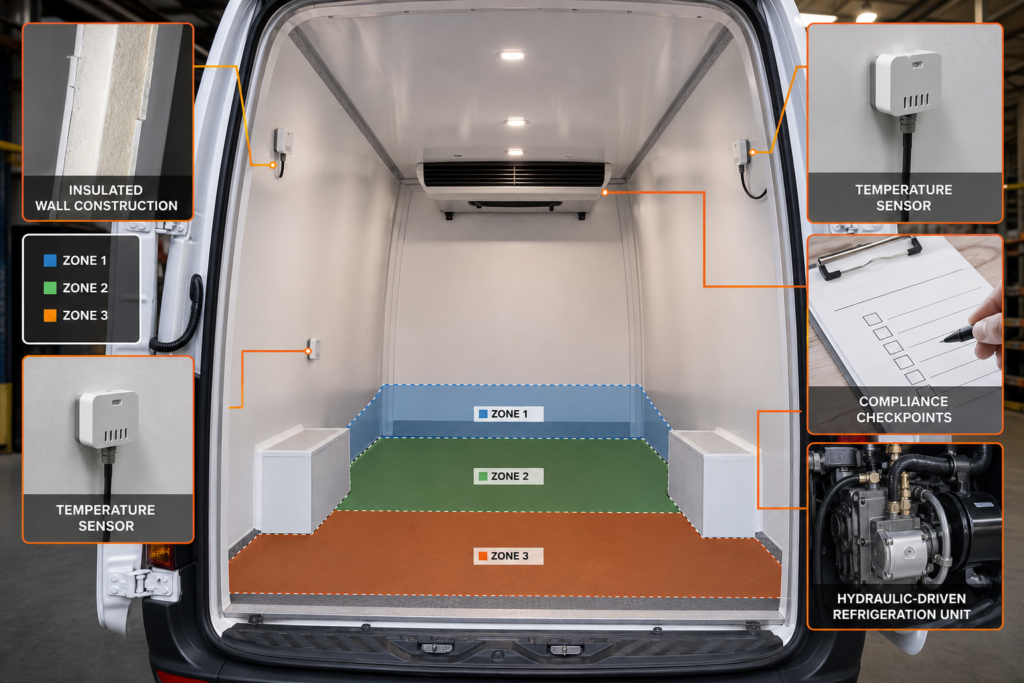

Finally, write a compliance matrix that pairs each requirement with a design feature , e.g., MSHA blast‑zone → reinforced cab mounting, ISO 23875 → calibrated temperature sensors. By the end of this step you have a clear checklist of performance and safety targets.
Step 2: Survey the Van Before Selecting a Refrigeration Architecture
Walk the vehicle inside and out. Measure interior volume, note existing insulation thickness, and check the chassis for mounting points that can bear the weight of a refrigeration unit.
Identify power‑source constraints. Does the van already have a hydraulic system? Is there room for an auxiliary battery bank? Hydraulic-driven units draw power from the vehicle’s hydraulic power source.
Check airflow pathways. A blocked vent or a low‑profile roof can choke the condenser, reducing cooling capacity. Note any protrusions that may interfere with a rooftop condenser.
Take photos of the cab, bulkhead, and rear doors. These visuals help the engineering team design custom brackets and sealing gaskets.
Step 3: Choose the Powertrain, Cooling Capacity, and Filtration Package
Powertrain choice hinges on your existing vehicle architecture. If you have a hydraulic system, our custom hydraulic‑driven units give you high torque on the compressor without draining the electrical system. For fleets that prefer a direct‑drive solution, the Thermo King V‑Series provides a diesel‑engine‑independent option, but it adds a separate engine and extra weight.
Cooling capacity must match the duty‑cycle analysis from Step 1. A 3 kW unit, like the GAH SRF450, can maintain -25 °C in a midsize van when the ambient temperature stays under 20 °C. If you expect higher ambient heat, size up to 4 kW or add a secondary evaporator.
Filtration is often overlooked but critical for harsh environments. Heavy‑duty particulate filters protect the compressor from dust and sand, while a cabin‑air pre‑cleaner keeps the driver’s environment clean. Our designs integrate a dual‑stage filter that meets MSHA dust‑exposure limits.
Retrofit kits may be evaluated for fuel economy and applicable regional emissions requirements.
Step 4: Compare Retrofit Configurations Against Fleet Use Cases
Now line up each candidate against real‑world scenarios. The table below matches our top three configurations with typical use cases , urban delivery, remote mining, and seasonal medical supply runs.
| Configuration | Best Fit | Cooling Capacity (kW) | Power Source | Key Compliance |
|---|---|---|---|---|
| Polar Mobility Hydraulic‑Driven Unit | Mining, construction, remote sites | 3.0 | Hydraulic pump | MSHA, ISO 23875 |
| GAH SRF450 (direct‑drive) | Urban perishable goods | 3.0 | Engine‑direct | ECWTA, GDP |
| Thermo King V‑Series | Mixed‑use fleets needing separate engine | — | Diesel‑auxiliary | — |
Match the row that mirrors your daily load profile. If you need a unit that can run while the engine is off for long periods , for example, a medical supply van that parks at a clinic for hours , the hydraulic‑driven option wins because it stays active as long as the pump runs.
Step 5: Engineer the Installation, Validation, and Maintenance Program

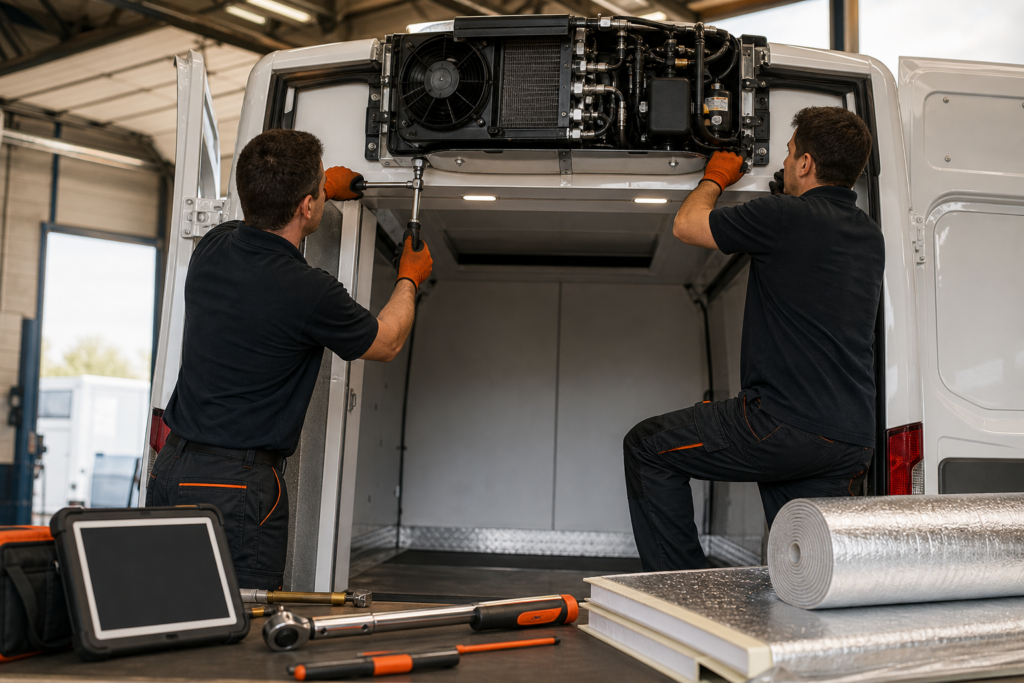

With a configuration locked in, we move to physical installation. Our engineers create a 3‑D model of the van, then design custom brackets that meet MSHA blast‑zone clearance. All welds use a low‑hydrogen process to avoid cracking in sub‑zero temps.
Validation follows a four‑stage test plan: (1) bench‑test the unit for cooling performance, (2) install it in a test van and run a hot‑weather soak, (3) simulate an MSHA blast‑zone event with pressure‑wave equipment, and (4) run a full‑cycle field test on a real route.
Maintenance schedules are built into the vehicle’s telematics. Sensors log compressor run‑time, oil pressure, and filter differential pressure. When a value crosses a threshold, an alert appears on the driver’s console and a service ticket is automatically generated.
We also provide a seasonal checklist that guides your crew through visual inspections, temperature calibration, and filter changes. See the full checklist at Seasonal Transport Refrigeration Checklist.
FAQ
What is the typical cooling capacity needed for a midsize van?
For most midsize vans carrying perishable food or pharma products, a 3 kW unit keeps interior temperatures below -20 °C in ambient conditions up to 20 °C. Larger cargo volumes or hotter climates require a higher‑capacity unit.
Do hydraulic‑driven retrofits work with electric vans?
They can, but you need a hydraulic pump that runs off the vehicle’s high‑voltage battery. Many electric platforms now offer optional hydraulic kits that integrate without sacrificing range.
How do I prove ISO 23875 compliance to my client?
Run the ISO‑defined temperature‑stability test, record the data, and store the log on a secure server. Provide the test report alongside the calibration certificates for sensors and the system’s control module.
Can I retrofit a van that already has a diesel auxiliary unit?
Yes. You either replace the diesel unit with a hydraulic or direct‑drive system, or you add a parallel hydraulic line that shares the existing pump. The choice depends on weight‑budget and emission goals.
What maintenance does the filtration package require?
Heavy‑duty filters should be inspected regularly and replaced if pressure drop exceeds 15 kPa. In dusty mining environments, a monthly check is recommended to avoid compressor wear.
Is there a way to monitor the unit remotely?
Our telematics package streams real‑time temperature, power consumption, and fault codes to a cloud dashboard. Alerts can be set for temperature excursions or low‑oil pressure.
Conclusion
We recommend Polar Mobility’s hydraulic‑driven retrofit as the first‑choice solution for any fleet that needs MSHA‑rated, ISO 23875‑compliant cold‑chain performance. Contact our engineering team to start a feasibility study and get a quote tailored to your van fleet.
